In the contemporary aggregate industry, the transition from natural sand to high-quality manufactured sand (M-sand) is no longer a trend—it is a technical necessity. As a Solution Architect, my focus is not merely on individual machines, but on the systematic integration of a sand making production line for crushing plants that ensures consistency in fineness modulus, superior particle shape, and optimized gradation.
The Central Engine: VSI6X Series Vertical Shaft Impactor
The core of any advanced sand making plant is the VSI6X Series Vertical Shaft Impactor. Unlike traditional crushers, the VSI6X is designed specifically for high-intensity shaping and sand production. The engineering breakthrough lies in its “Four-opening” rotor design, which significantly optimizes the material flow path. This architectural improvement increases throughput by approximately 30% compared to three-opening models, while reducing the wear on internal components.
The VSI6X operates on two distinct crushing principles, selectable based on the material characteristics and production goals:
- “Rock-on-Rock” (Autogenous Crushing): Ideal for high-hardness materials like granite or basalt. In this mode, material impacts material, creating a high-velocity “stone curtain” that produces the most cubic particle shape with minimal wear costs.
- “Rock-on-Iron” (Impact Crushing): Utilized when a higher crushing ratio is required for medium-hard materials. The material impacts the impact blocks (anvils), maximizing the conversion rate of feed into 0-5mm sand.
| Model | Capacity (t/h) | Rotor Speed (rpm) | Max Feed Size (mm) |
|---|---|---|---|
| VSI6X1150 | 344 – 663 | 1100 – 1510 | 45 |
| VSI6X1263 | 454 – 872 | 1000 – 1315 | 50 |
| VSI6X13100 | 738 – 1510 | 915 – 1205 | 50 |

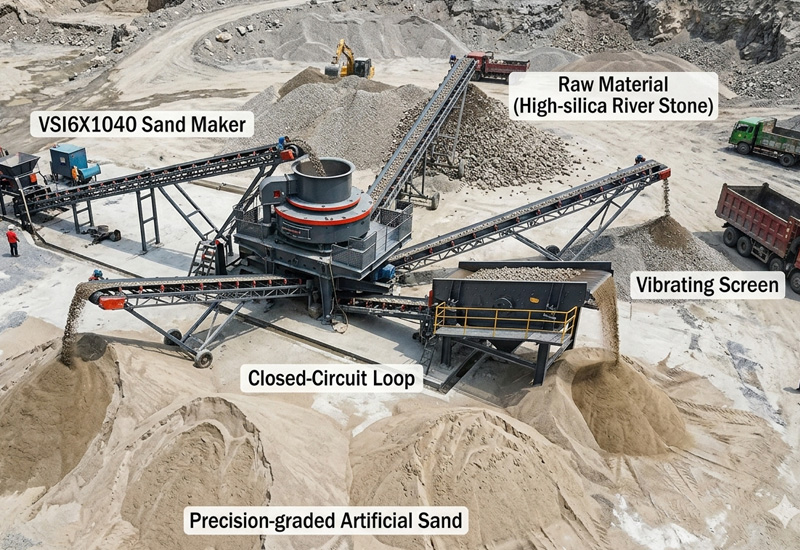

Process Flow Optimization: Synergy Between VSI and S5X Screening
To achieve high-quality aggregate shaping and strict gradation control, the production line must operate in a closed-circuit system. The synergy between the VSI machine and the S5X High-efficiency Vibrating Screen is critical. The S5X series, featuring a high-G vibration intensity, ensures that the 0-5mm fine material is efficiently separated from the circulating load.
By precisely managing the circulating load, we can avoid “over-crushing” and ensure the fineness modulus remains within the target range (typically 2.6–3.0 for construction sand). Large models like the S5X3075-2T, capable of handling up to 1800 t/h, allow for high-volume secondary or tertiary loops, ensuring that only materials meeting the specification leave the circuit.
Ensuring Purity: XSD Sand Washing and Dust Collection
In turnkey sand making solutions, the final step is quality refinement. Depending on the environmental regulations and material cleanliness, we integrate XSD Series Sand Washers or dry-type dust collection systems. The XSD wheel-type washer effectively removes silt and clay from the 0-5mm fraction. For example, the XSD3620 model provides a capacity of up to 150 t/h, ensuring that the final mineral product meets the stringent purity requirements of high-performance concrete (HPC).
Technical Integration Checklist
- What is the main advantage of the VSI6X rotor?
- The VSI6X utilizes a four-opening rotor design which increases material throughput by 30% and reduces unit wear compared to traditional three-opening rotors.
- How is particle shape controlled in the production line?
- Particle shape is controlled through the “Rock-on-Rock” crushing principle, which facilitates inter-particle attrition, effectively removing flaky and elongated edges to produce cubic aggregates.
- Can this production line handle hard rocks like basalt?
- Yes, by utilizing the VSI6X in a Rock-on-Rock configuration combined with S5X screens to manage the higher circulating load associated with hard rock crushing.
- What determines the fineness modulus of the final sand?
- The fineness modulus is primarily determined by the rotor speed of the VSI6X and the screen mesh selection on the S5X Vibrating Screen.
